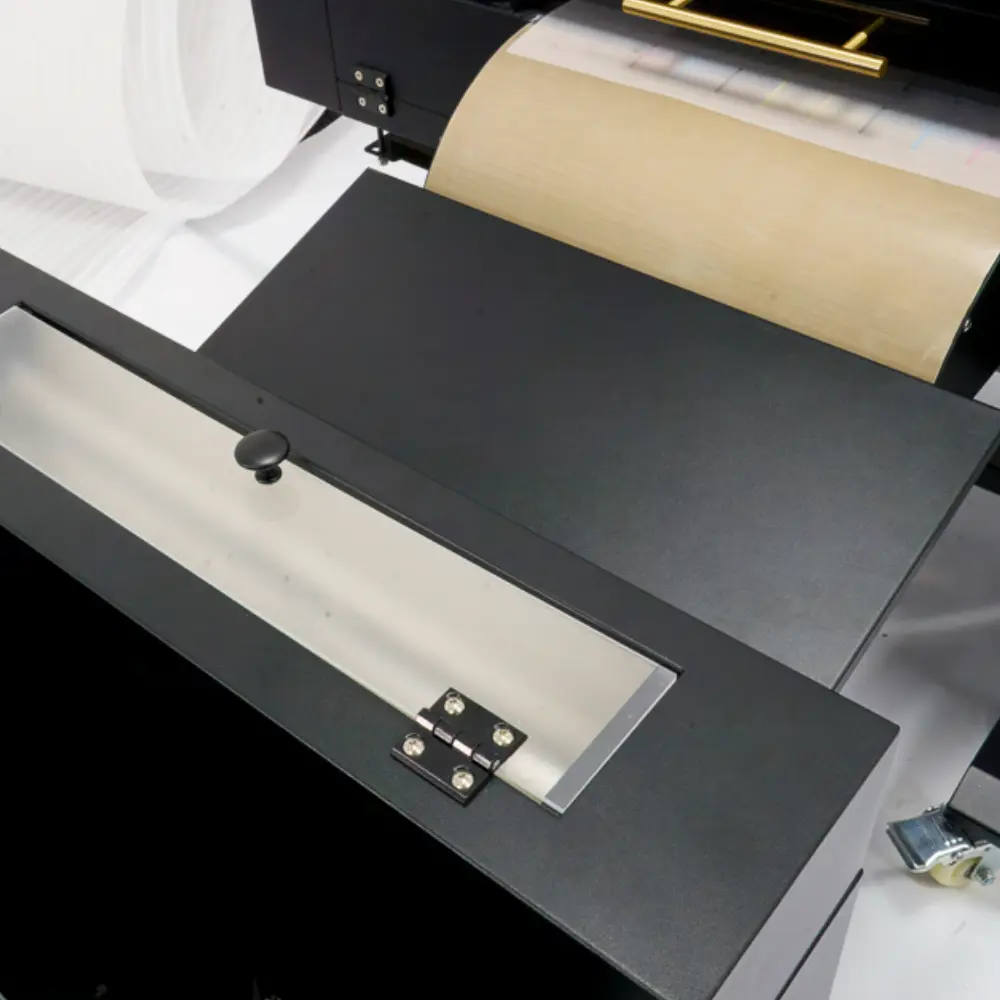

40cm DTF Gravity Ace Dual Head Printer & Roll to Roll Curing Oven Bundle

£11,021.67 +vat

Our 40cm DTF Gravity Ace Dual Head Printer & Roll to Roll Curing Oven Bundle includes everything you need to elevate your journey in the DTF world of printing, Ideal for:

• T-shirts & garments
• Sportswear
• Workwear
• Cotton, polyester, blends, nylon, leather
• Compact and stable
• Ideal for crafters

Key Points

• High white ink opacity with dual white heads
• Production-grade speed and stability
• Ideal for commercial DTF transfer production

Speed up workflow, 40cm x 9M PER HOUR printing & an Vacuum Powder & Curing Oven producing ready to press DTF.

Our 5 star after support gives you access to our engineers mobile number for fast response times should an issue arise.

What’s Included:

✅ 40cm DTF Gravity Ace Dual Head Printer
✅ Roll to Roll Powder & Curing Oven
✅ Includes FREE Laptop
✅ Includes CADLink Digital Factory
✅ 500ml CMYK Ink
✅ 1ltr SFW White Ink
✅ 2KG powder
✅ 1 x 40cm X 100m roll of film
✅ 12 Month Complete Warranty on all parts
✅ FREE Delivery
✅ FREE Onsite Installation
✅ FREE Training

FREE

Print Configuration

  • Printing Technology: Direct to Film (DTF)
  • Ink Configuration: CMYK + White
  • Printheads: 2 x i3200
  • Head Layout:
    • H1 : CMYK
    • H2: White
  • Max Print Width: 380 mm
  • Resolution: Up to 2400 DPI
  • Print Speed
  • 6-Pass: 9 linear meters per hour

Ink Type: Pigment DTF Ink
Ink Tank Capacity: 1 Litre per colour
White Ink System:

      • Independent white ink circulation
      • Auto agitation
      • White ink sediment prevention
  • Film Type: PET DTF Film (Hot / Cold / Instant Peel)
  • Film Width: Up to 400 mm

Colour & Software

  • RIP Software: CADlink Digital Factory (DTF Edition)
  • Supported Formats: PNG, TIFF, PSD, PDF, AI
  • ICC Profiles: Custom colour profiling supported

Connectivity & Control

  • Interface: Gigabit Ethernet
  • Operating System: Windows

Power Supply:

Printer 220-240V AC

Curing oven 220-240V AC

Power Consumption:

    • Printer: ~1.5 kW
    • Shaker/Dryer: ~1.5 kW
  • Operating Temp: 18–30°C
  • Humidity Range: 40–70% RH (non-condensing)

Physical Specifications printer

  • Machine Dimensions: Approx. 1000 × 700 × 1230 mm
  • Net Weight: ~74 kg
  • Chassis: Industrial steel frame

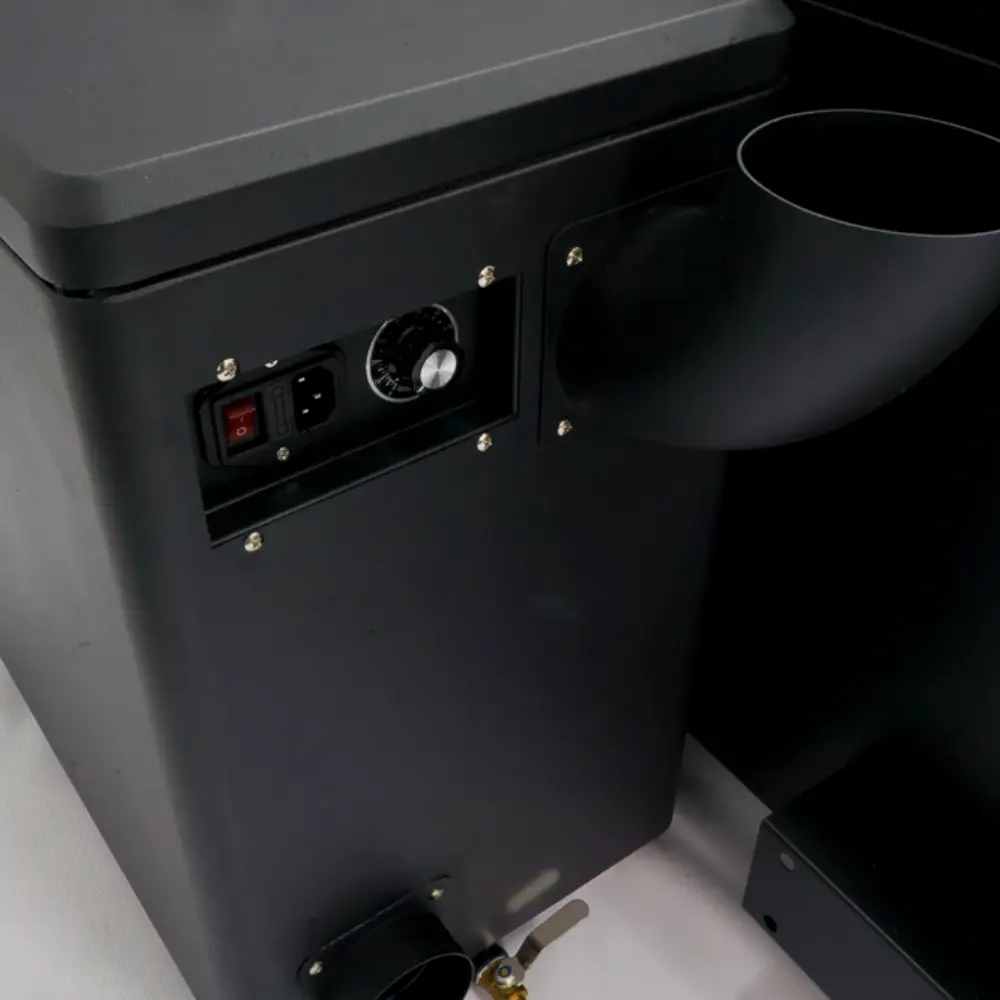

Physical Specifications Curing oven

  • Machine Dimensions: Approx. 1300 × 650 × 550 mm
  • Net Weight: ~ 15kg
  • Chassis: Industrial steel frame

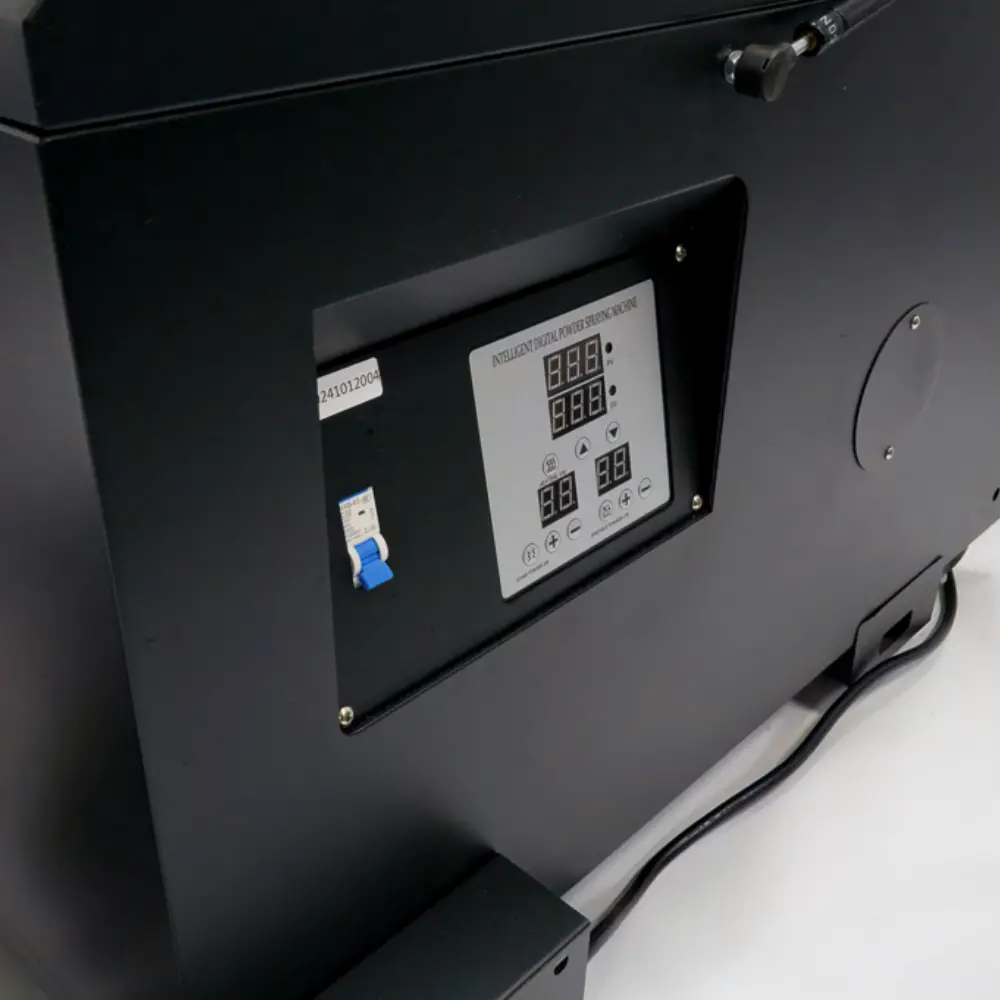

Powder & Curing (Vacuum)

  • Powder Application: Automatic powder shaker
  • Curing Method: Infrared + hot air oven
  • Powder Type: TPU hot-melt adhesive powder

Warranty – Non ink related parts are only covered if the service package is taken out at the time of purchase. Print heads are covered for failure not misuse or head strikes. (an inspection of the printhead will be done by our engineers to determine the printhead status)

Inkfuse DTF 12 month service plan consists of 3 visits throughout the year.
Every 4 months we will come and replace all dampers and capping station tops.
Give the printer and shaker a clean down
Realign and calibrate the printer for best printing results.
