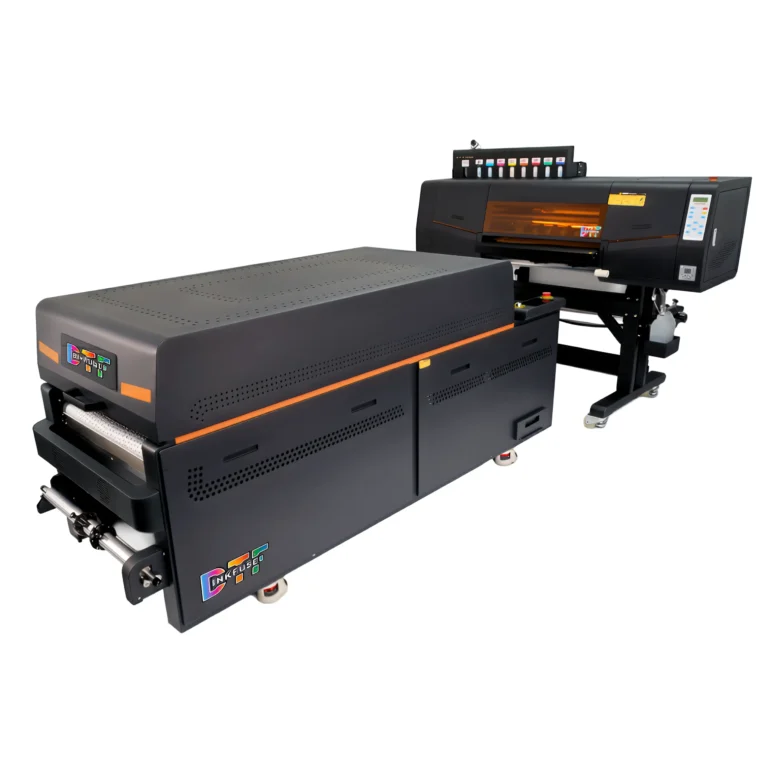

60cm DTF Vega Pro 6 (9 Colour) Head Printer and Shaker Bundle

£23,474.17 +vat

Our 60cm DTF Vega Pro 6 (9 Colour) Head Printer and Shaker Bundle includes everything you need to take your commercial DTF printing to the NEXT level, Ideal for:

• T-shirts & garments
• Sportswear
• Workwear
• Cotton, polyester, blends, nylon, leather
• Compact and stable
• Ideal for crafters

Key Points

• High white ink opacity with dual white heads
• Production-grade speed and stability
• Ideal for commercial DTF transfer production

Speed up workflow, 60cm x 35M PER HOUR (4 Pass) & 60cm x 25M PER HOUR (6Pass) printing & an Shaker Powder & Curing Oven producing ready to press DTF.

Our 5 star after support gives you access to our engineers mobile number for fast response times should an issue arise.

What’s Included:

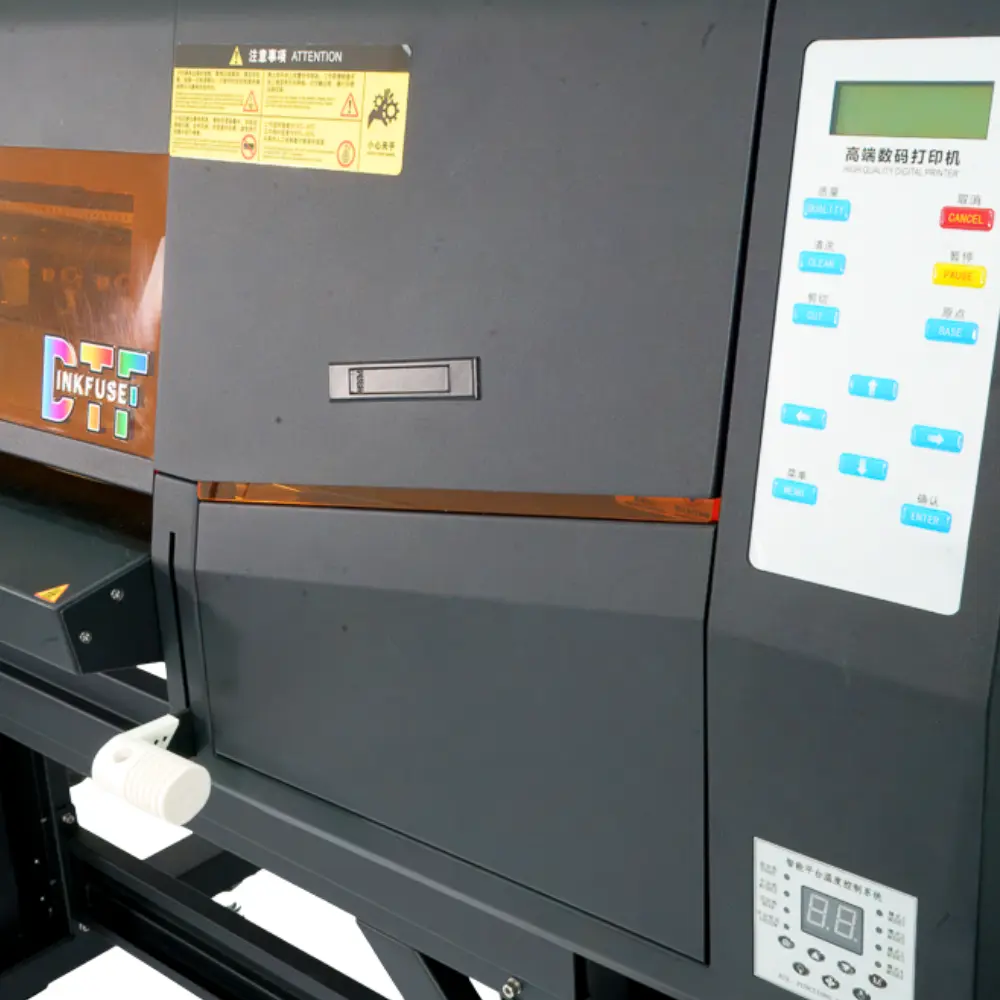

✅ 60cm DTF Vega 6 Head Printer

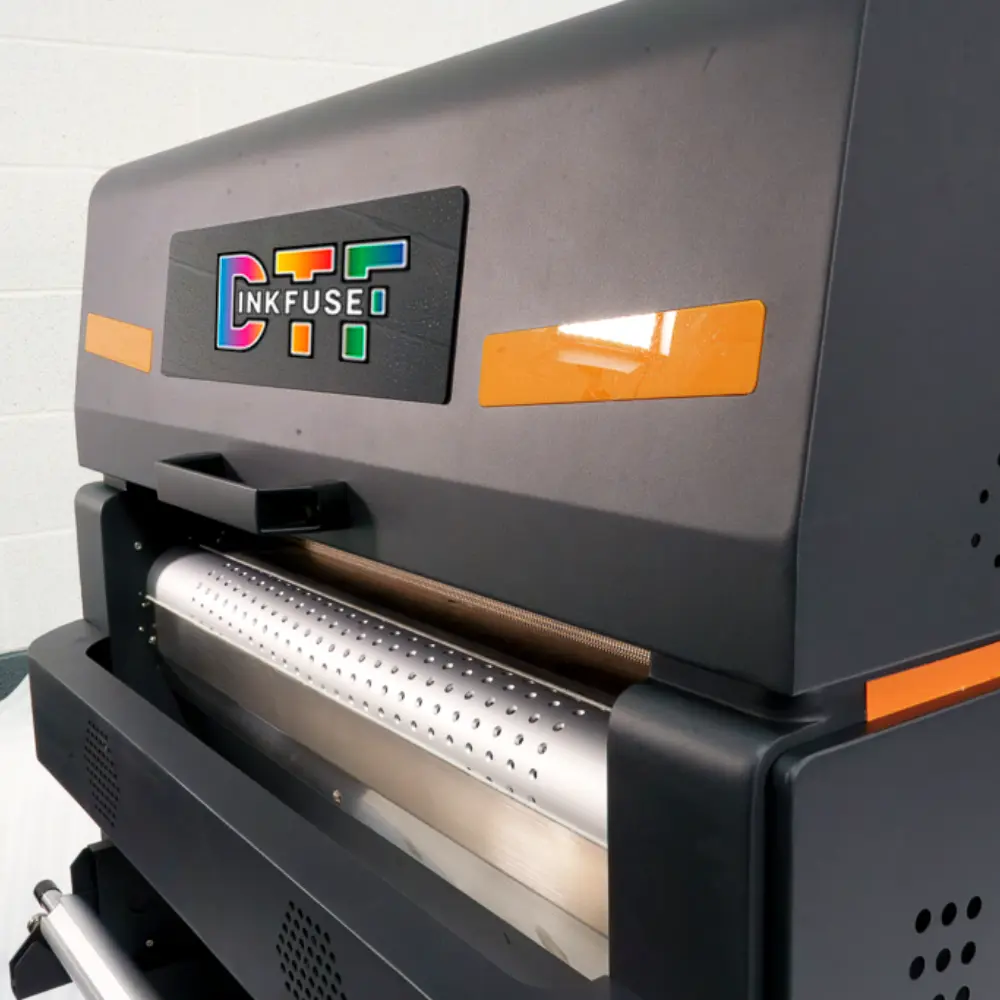

✅ Powder & Curing Oven
✅ Includes FREE Laptop
✅ Includes CADLink Digital Factory
✅ 1ltr CMYKORGB Ink
✅ 2ltr White Ink
✅ 5KG powder
✅ 1 x 60cm X 100m roll of film
✅ 12 Month Complete Warranty on all parts
✅ FREE Delivery
✅ FREE Onsite Installation
✅ FREE Training

FREE

  • Printing Technology: Direct to Film (DTF)

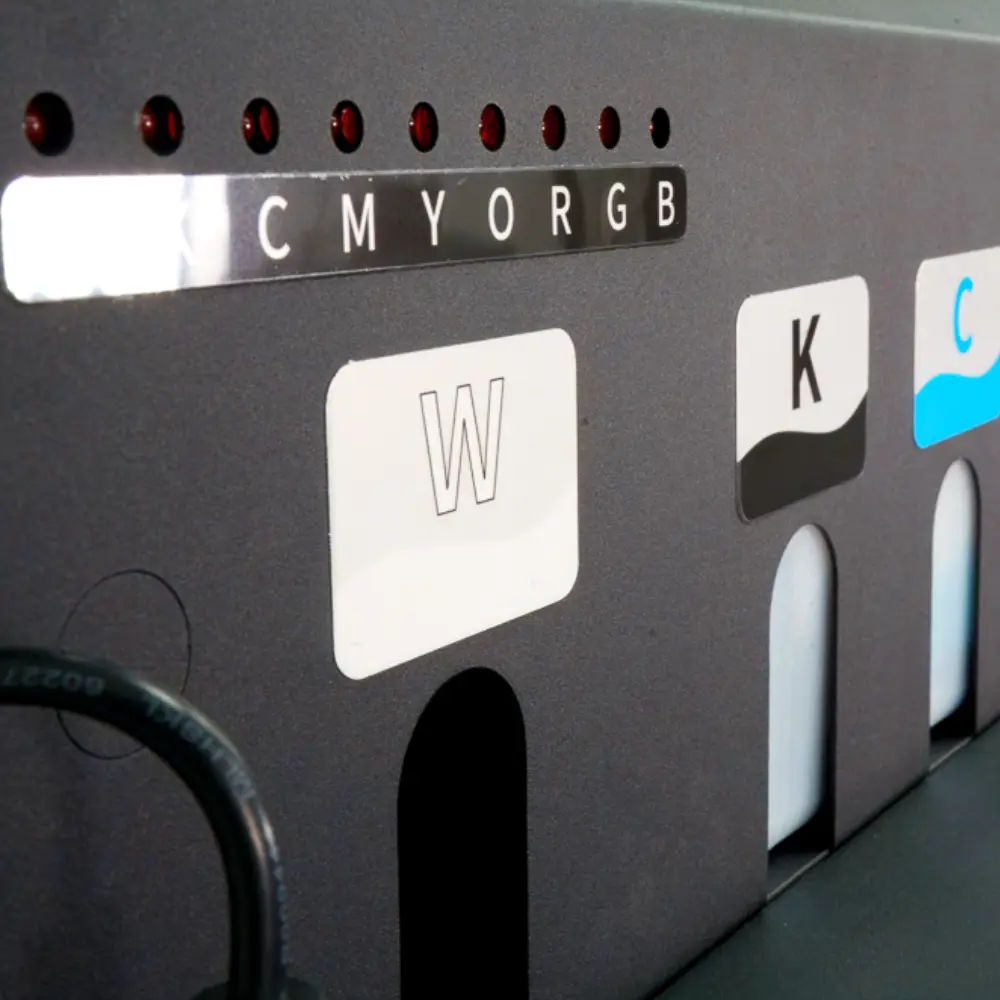

  • Ink Configuration: CMYK + O + R + G + B + White (9 colours)

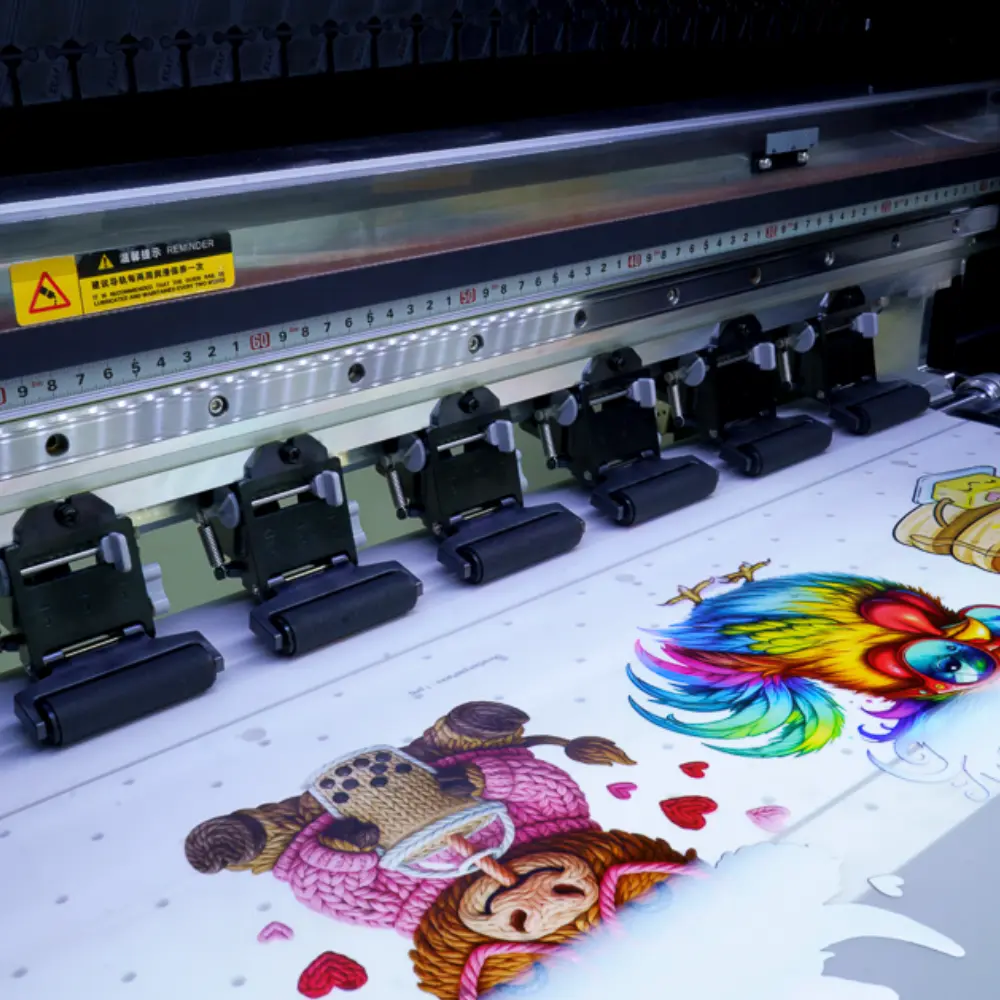

  • Printheads: 6 × Epson i3200-A1
  • Head Layout:
    • H1 & H2: CMYK
    • H3 & H4: O, R, G, B
    • H5 & H6: Dual White (High-density circulation)
  • Max Print Width: 580 mm
  • Resolution: Up to 2400 DPI
  • Print Speed
    • 4-Pass: 35 linear meters per hour
    • 6-Pass: 25 linear meters per hour

Ink Type: Pigment DTF Ink
Ink Tank Capacity: 1.5 Litre per colour
White Ink System:

      • Independent white ink circulation
      • Auto agitation
      • White ink sediment prevention
  • Film Type: PET DTF Film (Hot / Cold / Instant Peel)
  • Film Width: Up to 600 mm
  • Take-Up System: Motorised auto take-up

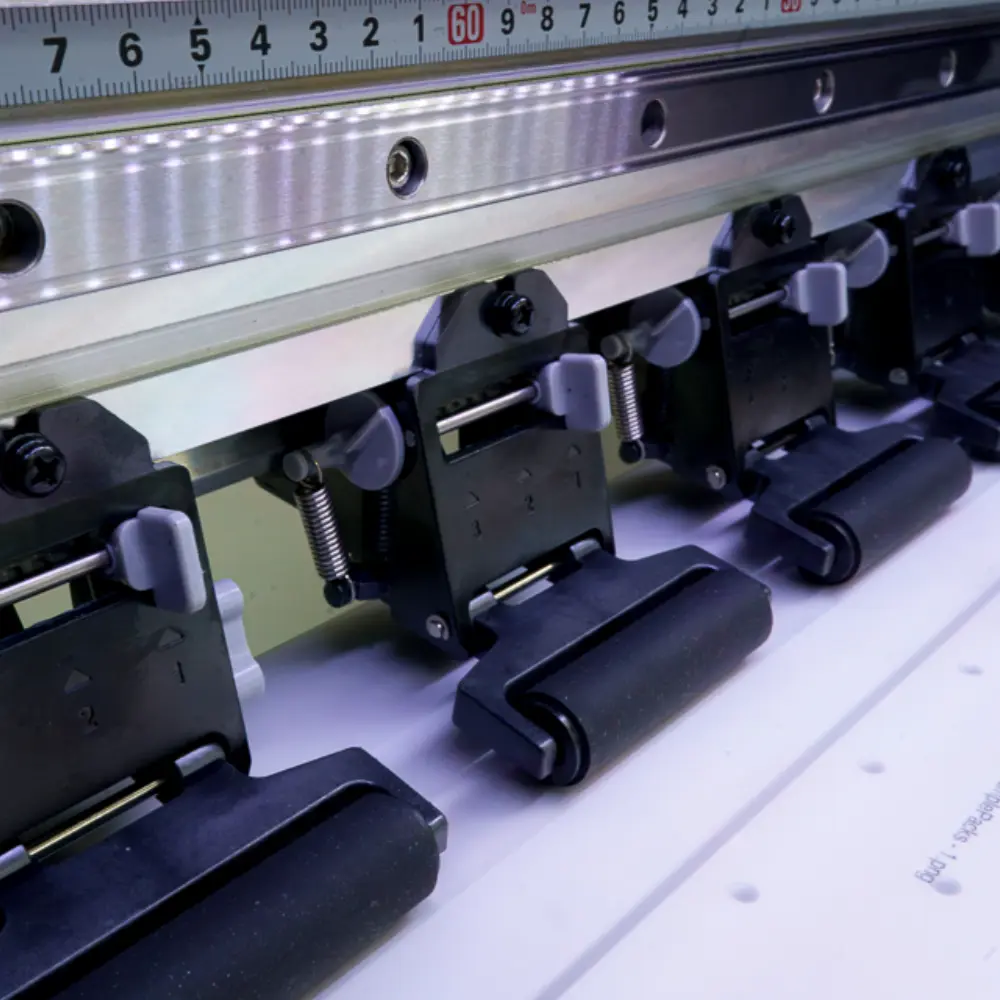

  • Media Feeding: Precision roller feed with tension control

Colour & Software

  • RIP Software: CADlink Digital Factory (DTF Edition)
  • Supported Formats: PNG, TIFF, PSD, PDF, AI
  • ICC Profiles: Custom colour profiling supported

Connectivity & Control

  • Interface: Gigabit Ethernet
  • Operating System: Windows

Power Supply:

Printer 220-240V AC

Curing oven 32AMP single phase

Power Consumption:

    • Printer: ~1.5 kW
    • Shaker/Dryer: ~3.5–5 kW
  • Operating Temp: 18–30°C
  • Humidity Range: 40–70% RH (non-condensing)

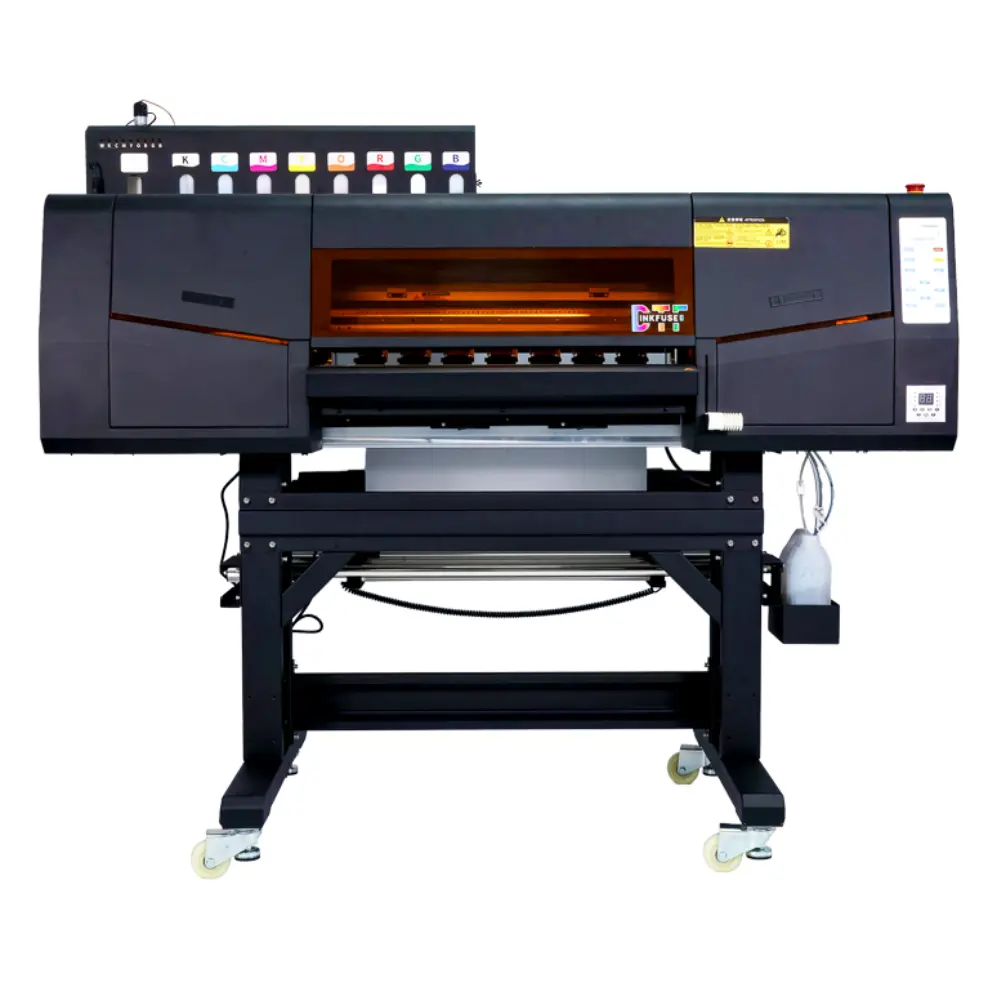

Physical Specifications printer

  • Machine Dimensions: Approx. 1750 × 850 × 1450 mm
  • Net Weight: ~280–320 kg
  • Chassis: Industrial steel frame

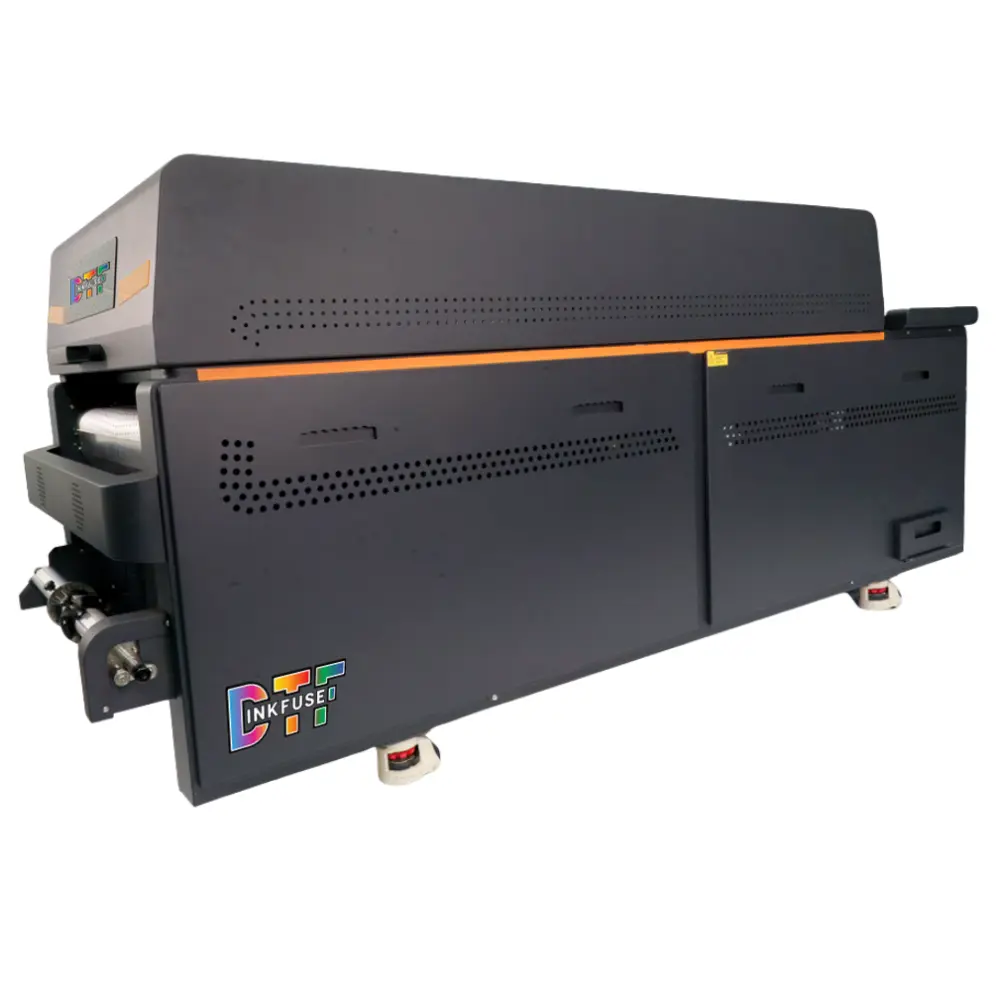

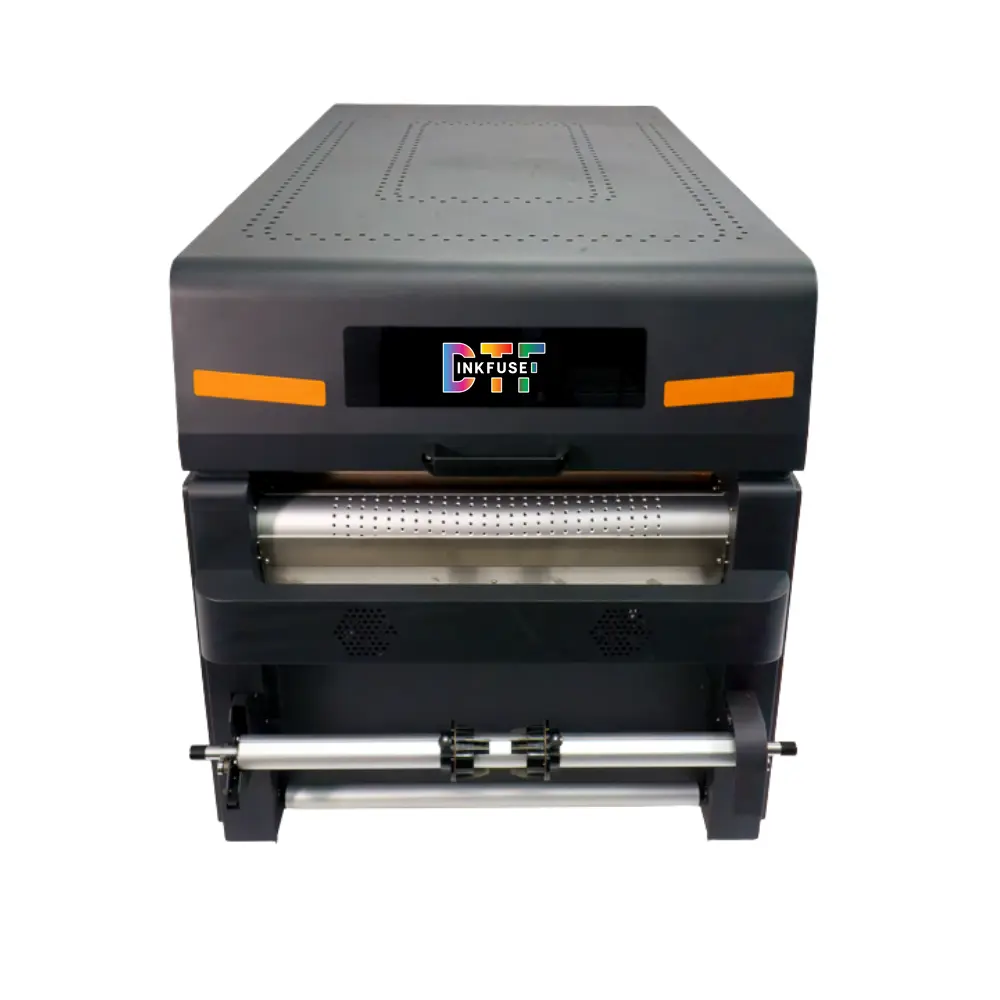

Physical Specifications Curing oven

  • Machine Dimensions: Approx. 2400 × 850 × 1000 mm
  • Net Weight: ~ 380kg
  • Chassis: Industrial steel frame

Powder & Curing (non extraxtion, built in filtration system)

  • Powder Application: Automatic powder shaker
  • Curing Method: Infrared + hot air oven
  • Temperature Control: Digital PID controller
  • Powder Type: TPU hot-melt adhesive powder

Warranty – Non ink related parts are only covered if the service package is taken out at the time of purchase. Print heads are covered for failure not misuse or head strikes. (an inspection of the printhead will be done by our engineers to determine the printhead status)

Inkfuse DTF 12 month service plan consists of 3 visits throughout the year.
Every 4 months we will come and replace all dampers and capping station tops.
Give the printer and shaker a clean down
Realign and calibrate the printer for best printing results.
